10.1. Network policies

Network Policies

One CNI function is the ability to enforce network policies and implement an in-cluster zero-trust container strategy. Network policies are a default Kubernetes object for controlling network traffic, but a CNI such as Cilium or Calico is required to enforce them. We will demonstrate traffic blocking with our simple app.

Task 10.1.1: Deploy a simple frontend/backend application

First we need a simple application to show the effects on Kubernetes network policies. Let’s have a look at the following resource definitions:

---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: frontend
  labels:
    app: frontend
spec:
  replicas: 1
  selector:
    matchLabels:
      app: frontend
  template:
    metadata:
      labels:
        app: frontend
    spec:
      containers:
      - name: frontend-container
        image: docker.io/byrnedo/alpine-curl:0.1.8
        imagePullPolicy: IfNotPresent
        command: [ "/bin/ash", "-c", "sleep 1000000000" ]
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: not-frontend
  labels:
    app: not-frontend
spec:
  replicas: 1
  selector:
    matchLabels:
      app: not-frontend
  template:
    metadata:
      labels:
        app: not-frontend
    spec:
      containers:
      - name: not-frontend-container
        image: docker.io/byrnedo/alpine-curl:0.1.8
        imagePullPolicy: IfNotPresent
        command: [ "/bin/ash", "-c", "sleep 1000000000" ]
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: backend
  labels:
    app: backend
spec:
  replicas: 1
  selector:
    matchLabels:
      app: backend
  template:
    metadata:
      labels:
        app: backend
    spec:
      containers:
      - name: backend-container
        env:
        - name: PORT
          value: "8080"
        ports:
        - containerPort: 8080
        image: docker.io/cilium/json-mock:1.2
        imagePullPolicy: IfNotPresent
---
apiVersion: v1
kind: Service
metadata:
  name: backend
  labels:
    app: backend
spec:
  type: ClusterIP
  selector:
    app: backend
  ports:
  - name: http
    port: 8080

The application consists of two client deployments (frontend and not-frontend) and one backend deployment (backend). We are going to send requests from the frontend and not-frontend pods to the backend pod.

Create a file simple-app.yaml with the above content.

Deploy the app:

kubectl apply -f simple-app.yaml

this gives you the following output:

deployment.apps/frontend created
deployment.apps/not-frontend created
deployment.apps/backend created
service/backend created

Verify with the following command that everything is up and running:

kubectl get all

NAME                               READY   STATUS    RESTARTS   AGE
pod/backend-65f7c794cc-b9j66       1/1     Running   0          3m17s
pod/frontend-76fbb99468-mbzcm      1/1     Running   0          3m17s
pod/not-frontend-8f467ccbd-cbks8   1/1     Running   0          3m17s

NAME                 TYPE        CLUSTER-IP     EXTERNAL-IP   PORT(S)    AGE
service/backend      ClusterIP   10.97.228.29   <none>        8080/TCP   3m17s
service/kubernetes   ClusterIP   10.96.0.1      <none>        443/TCP    45m

NAME                           READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/backend        1/1     1            1           3m17s
deployment.apps/frontend       1/1     1            1           3m17s
deployment.apps/not-frontend   1/1     1            1           3m17s

NAME                                     DESIRED   CURRENT   READY   AGE
replicaset.apps/backend-65f7c794cc       1         1         1       3m17s
replicaset.apps/frontend-76fbb99468      1         1         1       3m17s
replicaset.apps/not-frontend-8f467ccbd   1         1         1       3m17s

Let us make life a bit easier by storing the pods name into an environment variable so we can reuse it later again:

export FRONTEND=$(kubectl get pods -l app=frontend -o jsonpath='{.items[0].metadata.name}')
echo ${FRONTEND}
export NOT_FRONTEND=$(kubectl get pods -l app=not-frontend -o jsonpath='{.items[0].metadata.name}')
echo ${NOT_FRONTEND}

Task 10.1.2: Verify connectivity

Now we generate some traffic as a baseline test.

kubectl exec -ti ${FRONTEND} -- curl -I --connect-timeout 5 backend:8080

and

kubectl exec -ti ${NOT_FRONTEND} -- curl -I --connect-timeout 5 backend:8080

This will execute a simple curl call from the frontend and not-frondend application to the backend application:

# Frontend
HTTP/1.1 200 OK
X-Powered-By: Express
Vary: Origin, Accept-Encoding
Access-Control-Allow-Credentials: true
Accept-Ranges: bytes
Cache-Control: public, max-age=0
Last-Modified: Sat, 26 Oct 1985 08:15:00 GMT
ETag: W/"83d-7438674ba0"
Content-Type: text/html; charset=UTF-8
Content-Length: 2109
Date: Tue, 23 Nov 2021 12:50:44 GMT
Connection: keep-alive

# Not Frontend
HTTP/1.1 200 OK
X-Powered-By: Express
Vary: Origin, Accept-Encoding
Access-Control-Allow-Credentials: true
Accept-Ranges: bytes
Cache-Control: public, max-age=0
Last-Modified: Sat, 26 Oct 1985 08:15:00 GMT
ETag: W/"83d-7438674ba0"
Content-Type: text/html; charset=UTF-8
Content-Length: 2109
Date: Tue, 23 Nov 2021 12:50:44 GMT
Connection: keep-alive

and we see, both applications can connect to the backend application.

Until now ingress and egress policy enforcement are still disabled on all of our pods because no network policy has been imported yet selecting any of the pods. Let us change this.

Task 10.1.3: Deny traffic with a Network Policy

We block traffic by applying a network policy. Create a file backend-ingress-deny.yaml with the following content:

---
kind: NetworkPolicy
apiVersion: networking.k8s.io/v1
metadata:
  name: backend-ingress-deny
spec:
  podSelector:
    matchLabels:
      app: backend
  policyTypes:
  - Ingress

The policy will deny all ingress traffic as it is of type Ingress but specifies no allow rule, and will be applied to all pods with the app=backend label thanks to the podSelector.

Ok, then let’s create the policy with:

kubectl apply -f backend-ingress-deny.yaml

and you can verify the created NetworkPolicy with:

kubectl get netpol

which gives you an output similar to this:


NAME                   POD-SELECTOR   AGE
backend-ingress-deny   app=backend    2s

Task 10.1.4: Verify connectivity again

We can now execute the connectivity check again:

kubectl exec -ti ${FRONTEND} -- curl -I --connect-timeout 5 backend:8080

and

kubectl exec -ti ${NOT_FRONTEND} -- curl -I --connect-timeout 5 backend:8080

but this time you see that the frontend and not-frontend application cannot connect anymore to the backend:

# Frontend
curl: (28) Connection timed out after 5001 milliseconds
command terminated with exit code 28
# Not Frontend
curl: (28) Connection timed out after 5001 milliseconds
command terminated with exit code 28

The network policy correctly switched the default ingress behavior from default allow to default deny.

Let’s now selectively re-allow traffic again, but only from frontend to backend.

Task 10.1.5: Allow traffic from frontend to backend

We can do it by crafting a new network policy manually, but we can also use the Network Policy Editor made by Cilium to help us out:

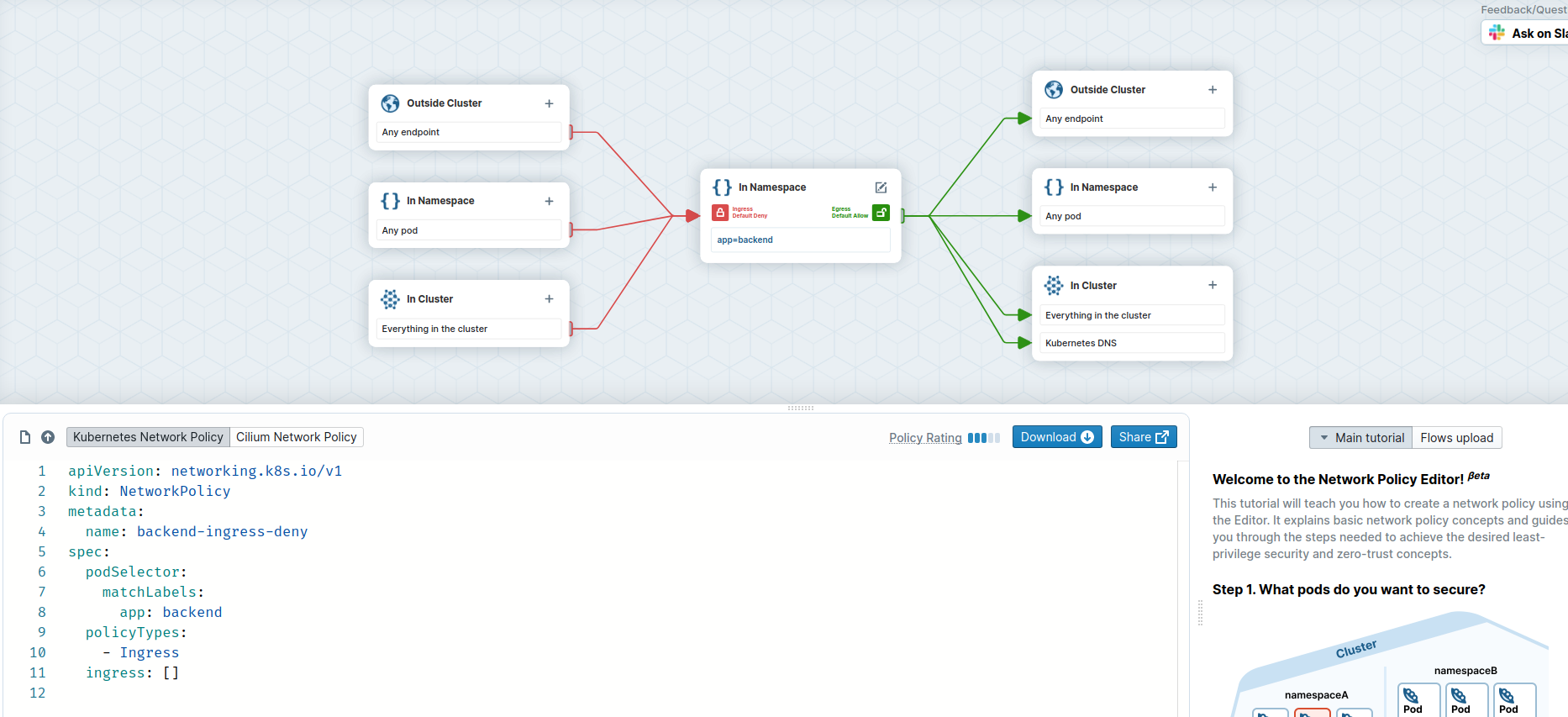

Above you see our original policy, we create an new one with the editor now.

• Go to https://editor.cilium.io/

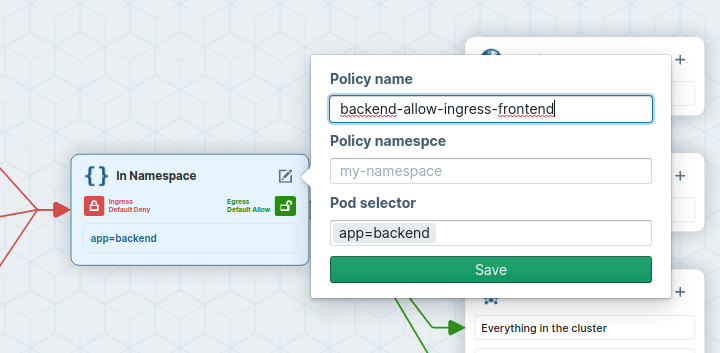

• Name the network policy to backend-allow-ingress-frontend (using the Edit button in the center).
• add app=backend as Pod Selector
• Set Ingress to default deny

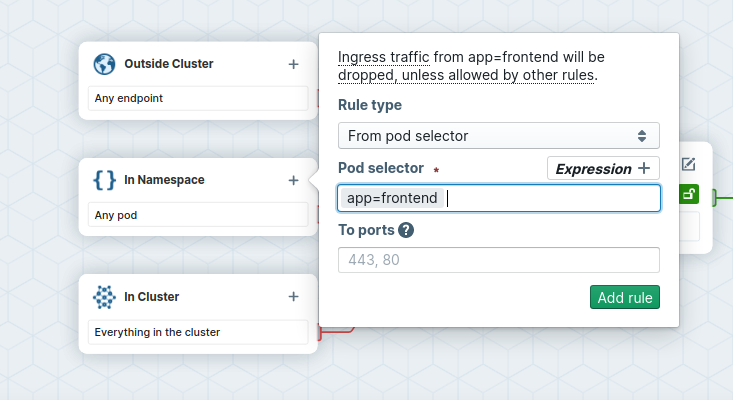

• On the ingress side, add app=frontend as podSelector for pods in the same Namespace.

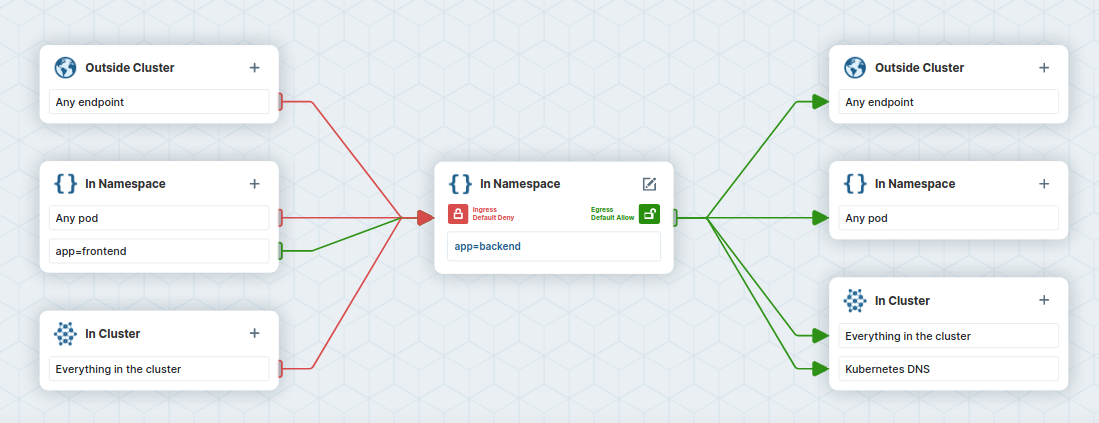

• Inspect the ingress flow colors: the policy will deny all ingress traffic to pods labeled app=backend, except for traffic coming from pods labeled app=frontend.

• Copy the policy YAML into a file named backend-allow-ingress-frontend.yaml. Make sure to use the Networkpolicy and not the CiliumNetworkPolicy!

The file should look like this:

---
apiVersion: networking.k8s.io/v1
kind: NetworkPolicy
metadata:
  name: "backend-allow-ingress-frontend"
spec:
  podSelector:
    matchLabels:
      app: backend
  policyTypes:
    - Ingress
  ingress:
    - from:
        - podSelector:
            matchLabels:
              app: frontend

Apply the new policy:

kubectl apply -f backend-allow-ingress-frontend.yaml

and then execute the connectivity test again:

kubectl exec -ti ${FRONTEND} -- curl -I --connect-timeout 5 backend:8080

and

kubectl exec -ti ${NOT_FRONTEND} -- curl -I --connect-timeout 5 backend:8080

This time, the frontend application is able to connect to the backend but the not-frontend application still cannot connect to the backend:

# Frontend
HTTP/1.1 200 OK
X-Powered-By: Express
Vary: Origin, Accept-Encoding
Access-Control-Allow-Credentials: true
Accept-Ranges: bytes
Cache-Control: public, max-age=0
Last-Modified: Sat, 26 Oct 1985 08:15:00 GMT
ETag: W/"83d-7438674ba0"
Content-Type: text/html; charset=UTF-8
Content-Length: 2109
Date: Tue, 23 Nov 2021 13:08:27 GMT
Connection: keep-alive

# Not Frontend
curl: (28) Connection timed out after 5001 milliseconds
command terminated with exit code 28

Note that this is working despite the fact we did not delete the previous backend-ingress-deny policy:

kubectl get netpol

NAME                             POD-SELECTOR   AGE
backend-allow-ingress-frontend   app=backend    2m7s
backend-ingress-deny             app=backend    12m

Network policies are additive. Just like with firewalls, it is thus a good idea to have default DENY policies and then add more specific ALLOW policies as needed.
